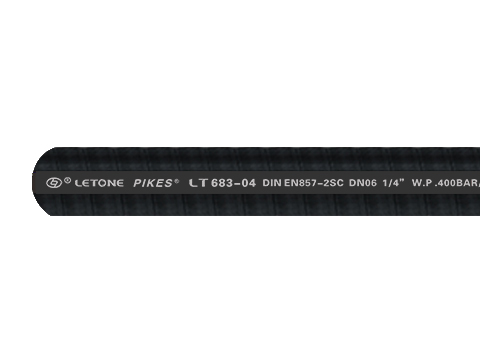

LT683
Applications：Suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for General
Reinforcement：one or two layers of super flexible high-strength steel wire
Cover：one or two layers of super-soft high-strength steel wire
Temperature：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)
|
SIZE |
SIZE |
I.D. |
O.D. |
Max.W.P. |
Min.B.P. |
Min.B.R. |
|
|
Min |
Max |
Max |
(MPa) |
(MPa) |
(mm) |
||
|
6 |
1/4-1 |
6.1 |
6.9 |
13.5 |
22.5 |
90 |
75 |
|
8 |
5/16-1 |
7.7 |
8.5 |
14.5 |
21.5 |
86 |
85 |
|
10 |
3/8-1 |
9.3 |
10.1 |
16.9 |
18 |
72 |
90 |
|
13 |
1/2-1 |
12.3 |
13.5 |
20.4 |
16 |
64 |
130 |
|
16 |
5/8-1 |
15.5 |
16.7 |
23.0 |
13 |
52 |
150 |
|
19 |
3/4-1 |
18.6 |
19.8 |
26.7 |
10.5 |
42 |
180 |
|
25 |
1-1 |
25.0 |
26.4 |
34.9 |
8.8 |
35.5 |
230 |
|
6 |
1/4-2 |
6.1 |
6.9 |
14.2 |
40 |
160 |
75 |
|
8 |
5/16-2 |
7.7 |
8.5 |
16.0 |
35 |
140 |
85 |
|
10 |
3/8-2 |
9.3 |
10.1 |
18.3 |
33 |
132 |
90 |
|
13 |
1/2-2 |
12.3 |
13.5 |
21.5 |
27.5 |
110 |
130 |
|
16 |
5/8-2 |
15.5 |
16.7 |
24.7 |
25 |
100 |
170 |
|
19 |
3/4-2 |
18.6 |
19.8 |
28.6 |
21.5 |
86 |
200 |
|
25 |
1-2 |
25.0 |
26.4 |
36.6 |
16.5 |
66 |
250 |
